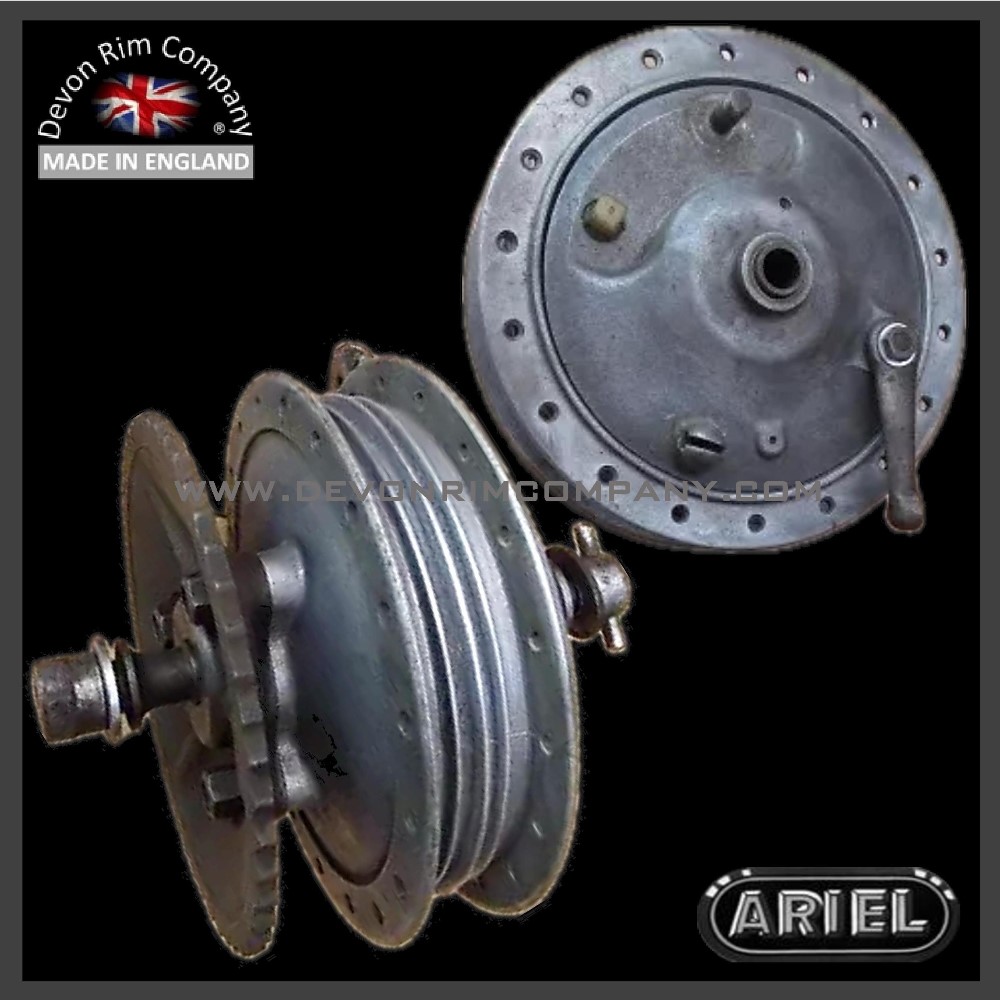

Suitable for all Ariel Arrow & Leader
Models that use these Full Width Hubs
Suitable for Front or Rear Wheels
If you require 2 please order 2 of each
Devon / Dunlop Part Code
16″ WM2 = AA18
17″ WM2 = AA19
18″ WM2 = AA20
Chrome Rims Plated AFTER Hole Punching
Dimple Pattern = 1×1 .250″ Nipple Holes
Spoke Specifications
Arrow Spoke Sets Supplied as
9 Gauge 3.6mm Single Thickness
Set consists of the following components
18 x Bent Inner Specification
18 x Bent to Outer Specification
36 x 9g .250″ Brass Nickel Plated Nipples
Leader Spokes sets Supplied as
8-10 Gauge 4.0mm – 3.2mm Butted
Set consists of the following components
18 x Bent to Inner Specification
18 x Bent to Outer Specification
36 x 10g .250″ Brass Nickel Plated Nipples
OEM ref numbers given are by no means exhaustive, we understand some manuals list differing numbers depending on Year & Model but be assured, provided you have selected the correct Hub and Rim diameter, these items will suit your application.
All our Wheel Rims & Spokes are 100% MADE IN ENGLAND not imported, modified and then passed off as such. Rims are Manufactured to a “Tru” Dunlop profile as used back in the day. We & many 1000s of customers simply say they are “The Best Wheel Rims Money Can Buy” All our Spokes are made from premium grade 304 Stainless Steel at 950 – 1050 N/mm2 to OEM specifications and bends. We only use U.K. sourced wires NOT Far East imports.
Devon Rolltru Premium Mirror Stainless
Manufactured from 2.0mm (WM2 & WM3) & 1.5mm (WM1) 304 2b Superior Grade Stainless Steel, Individually Hand Welded prior to Roll Forming so making the weld virtually undetectable, Then we polish them to a “Tru” Mirror finish that looks as good as Chrome but without the fear of rust. Most people can’t tell the difference. Pierced to OEM specifications, these Rims really are as good as it gets!
Devon Rolltru Diamond British Chrome
Manufactured on the same machinery by the same craftsmen right here in Devon, as are all our Wheel Rims, then unlike most of our competition, pierced to OEM specifications BEFORE being Triple Plated to Service Condition 4 British Chrome. Generally aimed at the high end & museum quality resto.
Devon Valtru Standard Stainless Steel
Manufactured to the same specifications as our Premium Stainless Rims but at a fraction of the cost to you. How do we do this, the answer is simple. POLISHING, it takes time , a lot of it. So these Rims are finished to a functional level that saves you ££££s. Still pierced to OEM specifications.
Devon Valtru Standard British Chrome
Still 100% Made In England but we’ve saved a lot of time on the polishing again. Still British Triple Chromed to Service Condition 4 and as with all our Chrome Rims the Piercing is done BEFORE plating and to OEM specification.
